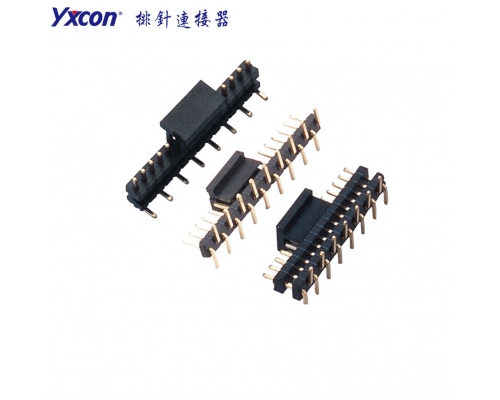

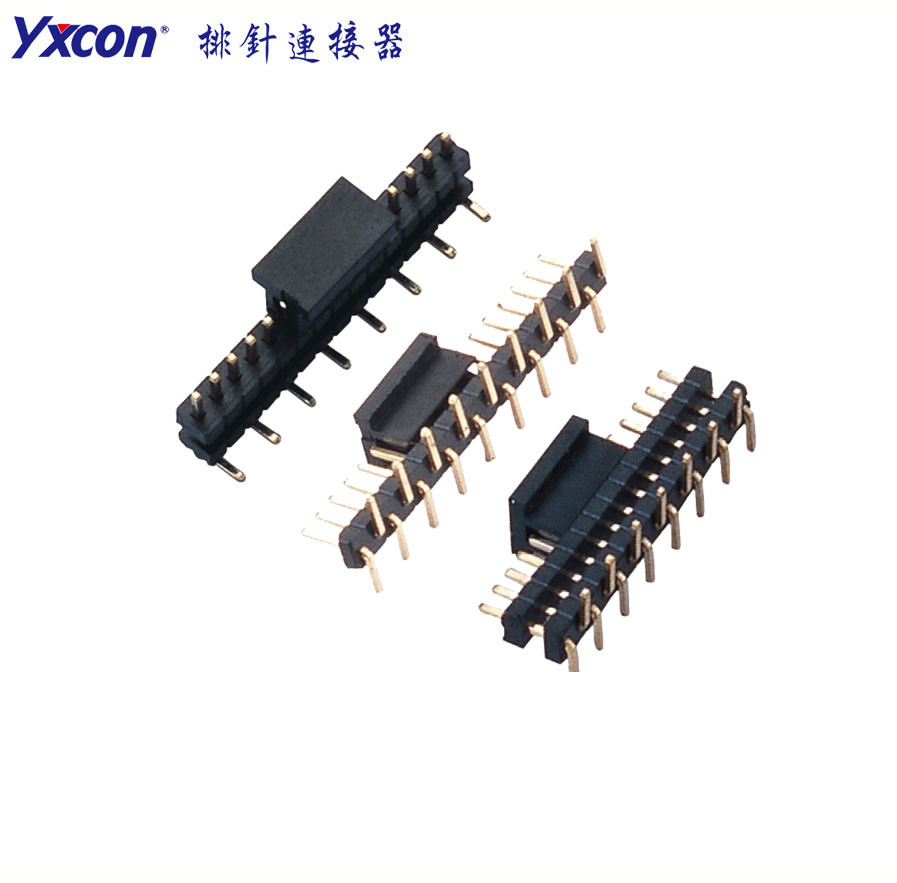

排针,连接器的一种，英文名称：Pin Header。
这种连接器广泛应用于电子、电器、仪表中的PCB电路板中，其作用是在电路内被阻断处或孤立不通的电路之间，起到桥梁的功能，担负起电流或信号传输的任务。通常与排母配套使用，构成板对板连接；或与电子线束端子配套使用，构成板对线连接；亦可独立用于板与板连接。由于不同产品所需要的规格并不相同，因此排针也有多种型号规格，按电子行业的排针连接器标准分类

Warning: Use of undefined constant value - assumed 'value' (this will throw an Error in a future version of PHP) in /www/wwwroot/www.yxcon.com/cache/templates/_561ee6fa.php on line 1851

• 产品PDF： 下载

Warning: Use of undefined constant value - assumed 'value' (this will throw an Error in a future version of PHP) in /www/wwwroot/www.yxcon.com/cache/templates/_561ee6fa.php on line 1851

• 配套产品PDF： 下载

Warning: Use of undefined constant value - assumed 'value' (this will throw an Error in a future version of PHP) in /www/wwwroot/www.yxcon.com/cache/templates/_561ee6fa.php on line 1851

• PIN 位： 2~50P

Warning: Use of undefined constant value - assumed 'value' (this will throw an Error in a future version of PHP) in /www/wwwroot/www.yxcon.com/cache/templates/_561ee6fa.php on line 1851

• 塑 高： 1.0mm,1.6mm,2.0mm,2.5mm

Warning: Use of undefined constant value - assumed 'value' (this will throw an Error in a future version of PHP) in /www/wwwroot/www.yxcon.com/cache/templates/_561ee6fa.php on line 1851

• 塑胶材质： PA6T,PA9T,LCP

Warning: Use of undefined constant value - assumed 'value' (this will throw an Error in a future version of PHP) in /www/wwwroot/www.yxcon.com/cache/templates/_561ee6fa.php on line 1851

• 端子材质： 黄铜

Warning: Use of undefined constant value - assumed 'value' (this will throw an Error in a future version of PHP) in /www/wwwroot/www.yxcon.com/cache/templates/_561ee6fa.php on line 1851

• 额定电流： 1.0AMP

Warning: Use of undefined constant value - assumed 'value' (this will throw an Error in a future version of PHP) in /www/wwwroot/www.yxcon.com/cache/templates/_561ee6fa.php on line 1851

• 耐压： AC 500V/分钟

Warning: Use of undefined constant value - assumed 'value' (this will throw an Error in a future version of PHP) in /www/wwwroot/www.yxcon.com/cache/templates/_561ee6fa.php on line 1851

• 接触阻抗： 20mΩ Max

Warning: Use of undefined constant value - assumed 'value' (this will throw an Error in a future version of PHP) in /www/wwwroot/www.yxcon.com/cache/templates/_561ee6fa.php on line 1851

• 绝缘电阻： 1000MΩ Min

Warning: Use of undefined constant value - assumed 'value' (this will throw an Error in a future version of PHP) in /www/wwwroot/www.yxcon.com/cache/templates/_561ee6fa.php on line 1851

Warning: Use of undefined constant value - assumed 'value' (this will throw an Error in a future version of PHP) in /www/wwwroot/www.yxcon.com/cache/templates/_561ee6fa.php on line 1851

• 工作温度： -40°C to 105°C

Warning: Use of undefined constant value - assumed 'value' (this will throw an Error in a future version of PHP) in /www/wwwroot/www.yxcon.com/cache/templates/_561ee6fa.php on line 1851

• 电镀层： 镍底30u“Min ，表面镀金0.8u
