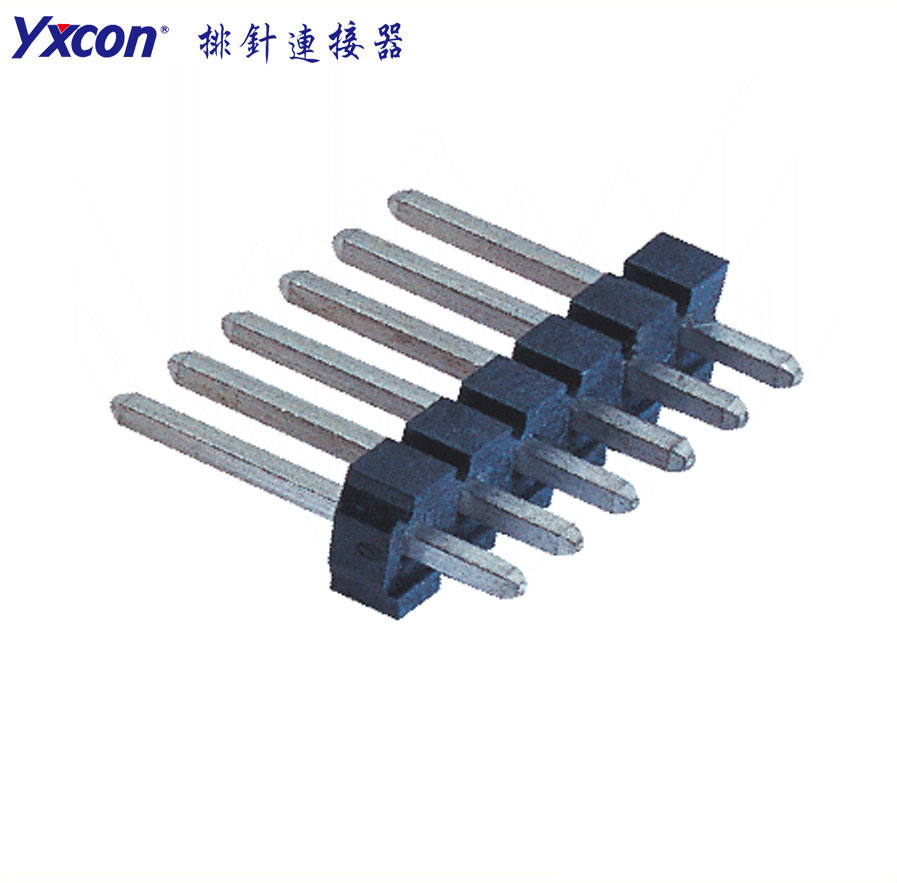

Pitch 3.96mm Pin Header Connector Staight PA6T single row 02pin to 40 pin

This kind of connector is widely used in PCB circuit boards in electronics, electrical appliances and meters. Its function is to act as a bridge between blocked circuits or isolated circuits, and to take on the task of current or signal transmission. It is usually used together with row mother to form plate-to-plate connection. Or is matched with an electronic wire harness terminal to form board-to-board connection; It can also be used independently for board-to-board connection.

  • This products PDF: download
  • Supporting product PDF: download
  • Pin bit: 1~30P
  • Rated current: 8 AMP
  • Pin material: Brass
  • Plastic material: LCP
  • Plastic height: 3.2mm
  • Withstand voltage: AC 500V/min
  • Contact resistance: 20 milliohm Max
  • Insulation resistance: 1000 MΩ Min
  • Working temperature: -40°C to 105°C

Pin connector


Pin Header, one type of connector.


This kind of connector is widely used in PCB circuit boards in electronics, electrical appliances and meters. Its function is to act as a bridge between blocked circuits or isolated circuits, and to take on the task of current or signal transmission. It is usually used together with row mother to form plate-to-plate connection. Or is matched with an electronic wire harness terminal to form board-to-board connection; It can also be used independently for board-to-board connection.


Since the specifications required by different products are not the same, there are also many types and specifications of pin connectors. According to the standard classification of pin connectors in the electronic industry, the pin connectors can be roughly divided in o eight categories: 0.8mm, 1.0mm, 1.27mm, 2.0mm, 2.5mm, 2.54mm, 3.96mm and 5.08mm according to the spacing. According to the number of rows, there are single row of needles, double row of needles, three rows of needles, four rows of needles, etc. According to the packaging rules, there are SMT (horizontal paste/vertical paste), DIP (direct insrt/bent insrt), etc. According to the installation mode: 180, 90, SMT


Number of needles: 2P to 100P


Pin: straight leg, bent leg, SMT;;


Pin material: brass or phosphor bronze;


Insulator materials: plastic PA66, PA46, PBT, PA6T, PA9T, PPS, LCP.


Surface treatment: gold plating (0.8u ",1u", 3u ",5u"), tin plating, semi-gold fog tin, semi-gold bright tin.


Packing: PE bag, roll bag, tube pack.


Processing technology: firstly, use brass (or phosphor bronze) to process the pin as required, nickel plating and gold plating as required, then use a mold to process the insulator part, and finally insrt the pin in o the insulator according to the size requirement on special equipment.


Needle arranging application: data processing, computer, program control equipment, electronic measuring equipment, automatic control, automation and communication


Note: There are many factors that affect the price. Usually, the most influential factors are gold plating thickness, PIN length, pin number.


This kind of connector is widely used in PCB circuit boards in electronics, electrical appliances and meters. Its function is to act as a bridge between blocked circuits or isolated circuits, and to take on the task of current or signal transmission. It is usually used together with row mother to form plate-to-plate connection. Or is matched with an electronic wire harness terminal to form board-to-board connection; It can also be used independently for board-to-board connection.


Product Name2.54 mm pitch special Pin Header connector straight/right angle/SMT
Pitch

2.54 mm,1.0mm,1.27mm,1.27*2.54mm,1.0mm

,0.8*1.2mm,3.96mm,5.08mm,3.0mm2.5mm

Detail2.54mm pitch special Pin Header connector straight/right angle/SMT
HousingPA9T/LCP+30%G.F UL94V-0
Number of Pin2~40pin
Insulator Height for Choice1.5mm ,1.7mm ,2.0mm ,2.5mm, 4.3mm, 5.0mm, 7.4mm
Brand NameYxcon
Contact MaterialBrass
Insulator MaterialPBT ,PA6T ,PA9T ,LCP ,PA66 ,PA46 ,PPS ,PA115(Halogen Free)
Rating Current2.0AMP
Contact Resistance20mΩ Max
Withstanding VoltageAC 500V/Minute
Insulating Resistance1000MΩ Min
Temperture Range

-40°C to +105°C

PlatingGold(Au) or Tin(Sn) plated over Nickel(Ni)
PackagingPE Bag,Tube,Tape&Reel,Tube+CAP,Tray,Plastic Box
