Pitch 2.54mm Ejector Header Connector 180 dgree or SMT or Right Angle PBT
Pitch 2.54mm Ejector Header Connector 180 dgree or SMT or Right Angle PBT
Online Inquiry

Ejector HeaderEjector Header has two ox horn-like ear buttons (long ears and short ears), so people call this connector Ejector Header, which is a very simple internal wiring device to use.Classificat

  • This products PDF： download
  • Supporting product PDF： download
  • Pin bit： 6~64p
  • Rated current： 3 AMP
  • Pin material： Brass
  • Plastic material： PBT
  • Withstand voltage： AC 500V/min
  • Contact resistance： 20 milliohm Max
  • Insulation resistance： 1000 MΩ Min
  • Working temperature： -55°C to 85°C
  • Electroplating thickness： 0.8u

Ejector Header

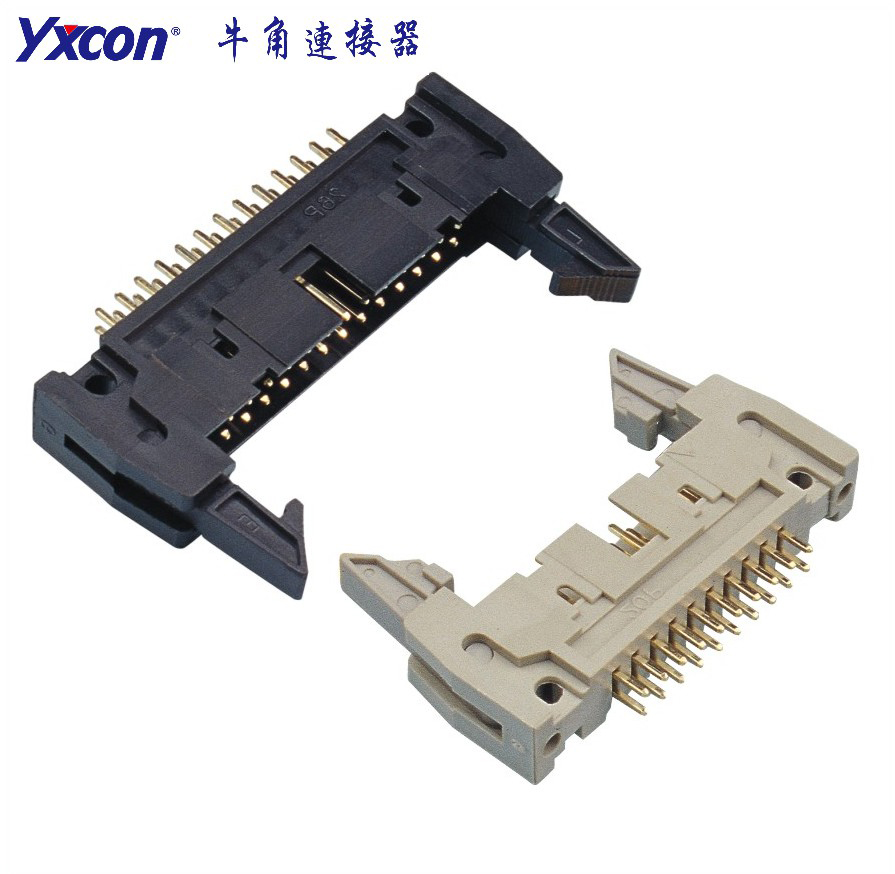

Ejector Header has two ox horn-like ear buttons (long ears and short ears), so people call this connector Ejector Header, which is a very simple internal wiring device to use.

Classification of Ejector Header: according to the spacing of PIN pins, Ejector Header with spacing of 1.27MM, Ejector Header with spacing of 2.0MM, Ejector Header with spacing of 2.54MM; According to the connection mode, it can be divided in o direct insrtion (180 degrees), bent insrtion (90 degrees) and SMT

Application of Ejector Header: Mainly used in computer equipment, industrial automation equipment, digital products, security equipment, electronic instruments, new energy products, medical devices and other fields

Packaging & Delivery

  • Packaging Details

  • Tube, PE bag,Tape & Reel, Tube +CAP, Plastic Box,Tray, different kinds of Pin Header are packed in different way.

  • Port

  • Shenzhen ,Hongkong ,Guangzhou



Product Name:Dongguan supplier Pitch 1.27mm 2.0mm 2.54mm 2.5mm  straight, smt and   right angle  eject header connector with best price
Description:

Pitch: 1.27mm 2.54mm,2.0mm 1.0mm 5.08mm 3.0mm, 2.5mm

Row Number :one or dual row

Color: Black , Grey

Orietional :straight, SMT, U type , right angle

Insulator Height for choice:4.9mm ,5.5mm ,5.7mm ,6.5mm ,7.3mm ,9.0mm ,9.4mm
Contact Material:Brass
Contact Plating:Gold (Au) or Tin (Sn) Plated over Nickel (Ni)
Insulator/Plastic  Material:PA6T ,PA9T ,LCP , PBT, PA66, PPS, PA115 accpet customer special requirement
Rating Current:1.00AMP
Contact Resistance:20mΩ Max
Insulating  Resistance:1000  MΩ  Min
Withstanding Voltage:AC  500V/Minute
Temperture:-40°  C     to    +105°  C
Material Flammability Rating:UL94V-0
