European socket connector series
European socket connector series
Online Inquiry

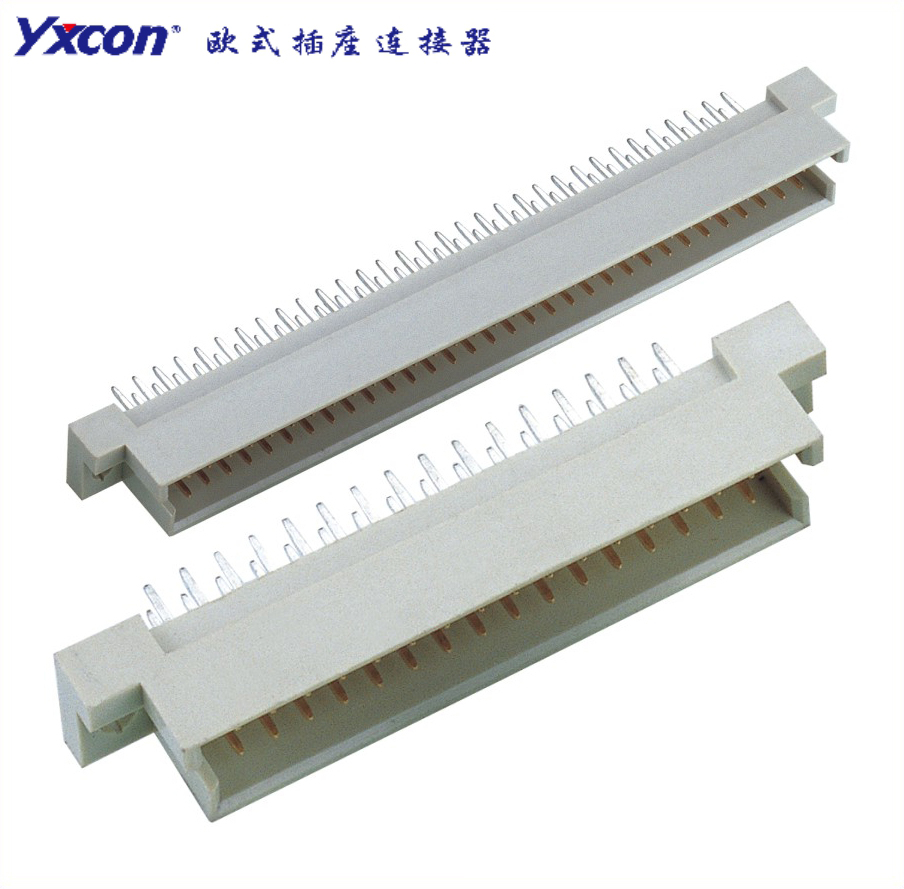

European socket connector

  • This products PDF： download
  • Supporting product PDF： download
  • Pin bit： 8~32p
  • Rated current： 3 AMP
  • Pin material： Brass
  • Plastic material： PA6T
  • Withstand voltage： AC 500V/min
  • Contact resistance： 20 milliohm Max
  • Insulation resistance： 1000 MΩ Min
  • Working temperature： -40°C to 105°C
