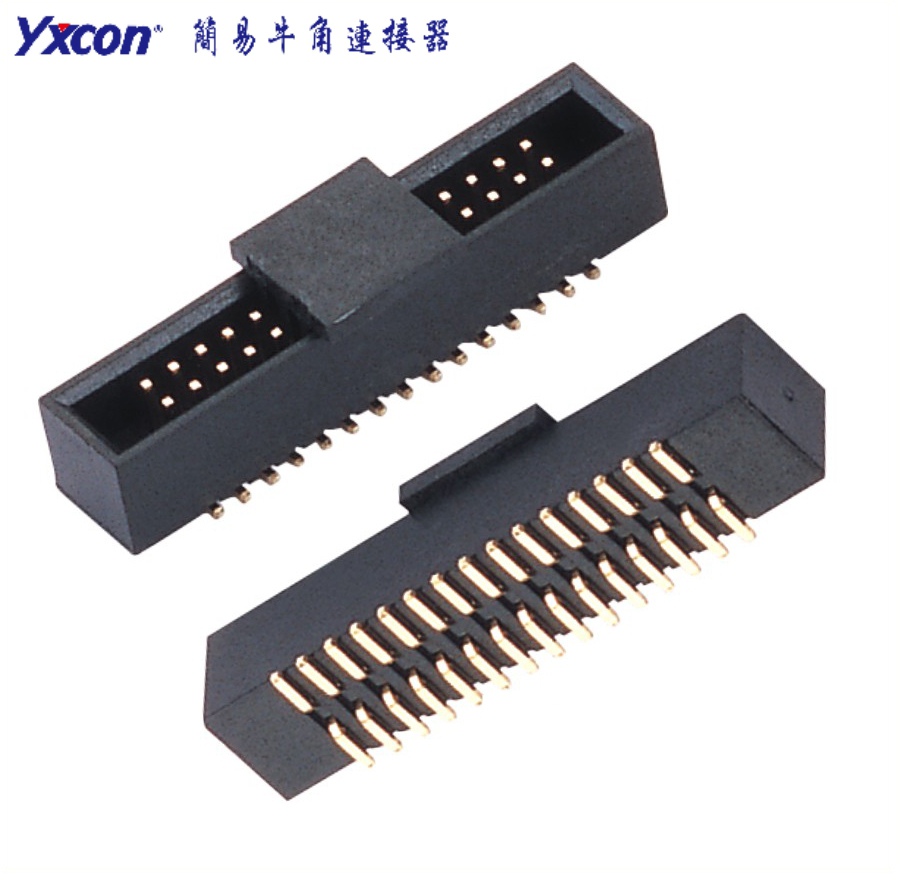

Pitch 1.27mm Box Header Connector Vertical SMT/straight/right angle 6-64P with PA6T, PA9T, LCP

Pitch 1.27mm Box Header Connector Vertical SMT/straight/right angle 6-64P with PA6T, PA9T, LCP

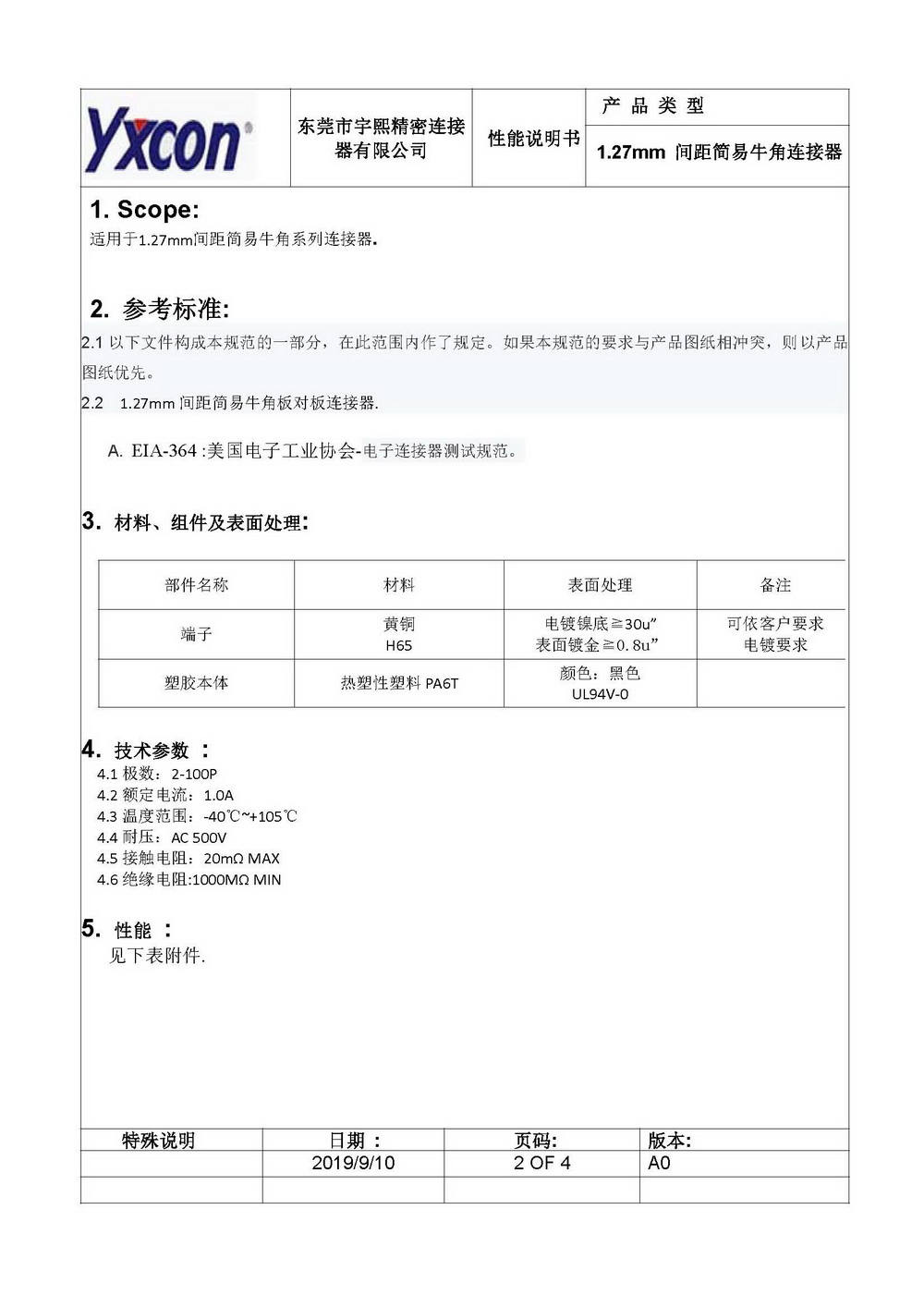

  • This products PDF: download
  • Supporting product PDF: download
  • Pin bit: 4P~100P
  • Rated current: 1 AMP
  • Pin material: Brass
  • Plastic material: PA6T
  • Plastic height: 4.9mm

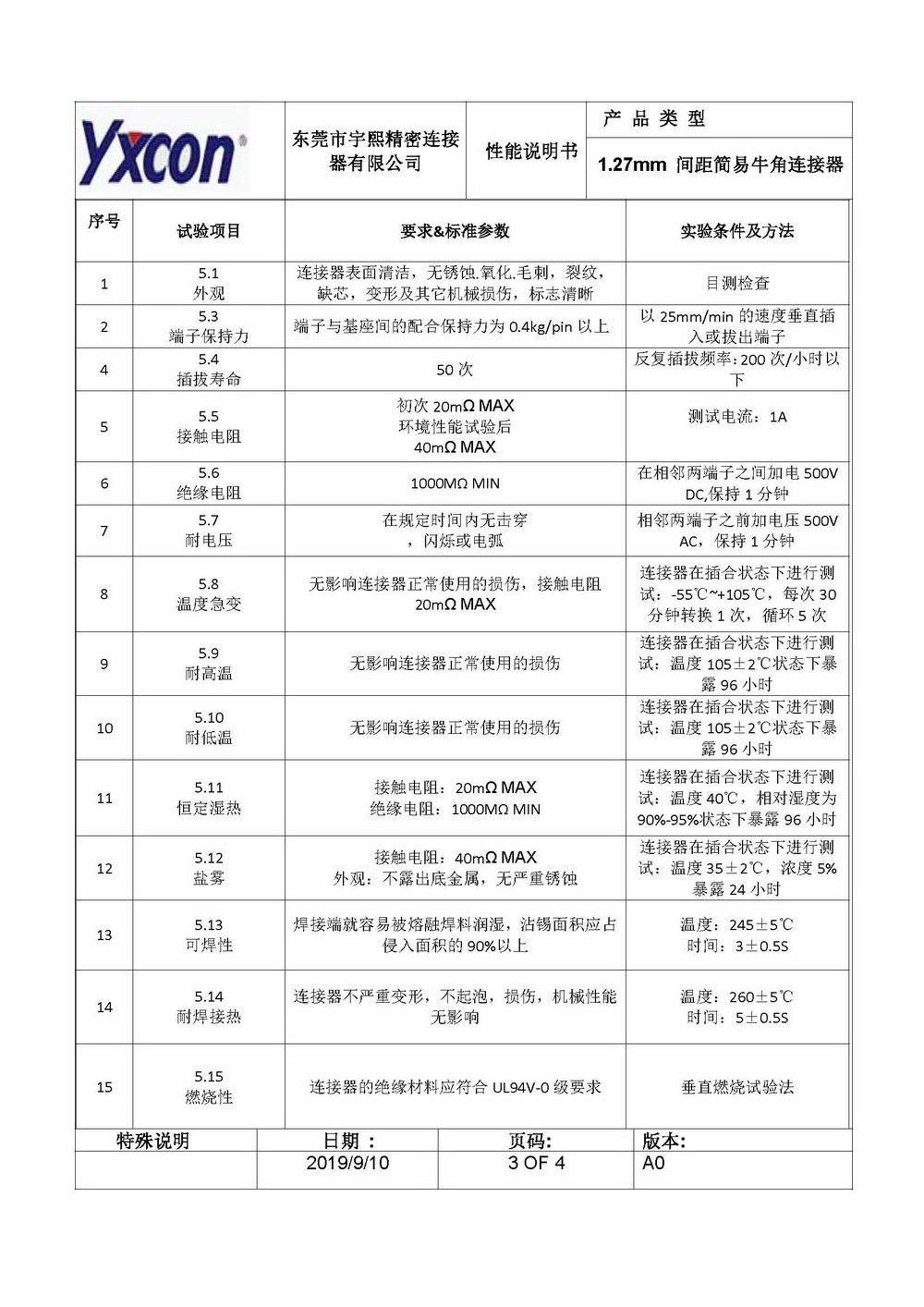

  • Withstand voltage: AC 500V/min
  • Contact resistance: 20 milliohm Max
  • Insulation resistance: 1000 MΩ Min
  • Working temperature: -40°C to 105°C
  • Electroplating thickness: 0.8u

Box Header

Box Header is usually called:  which is usually composed of square plastic socket and several square pins arranged in order. The difference between the simple ox connector and the ox horn connector is that the simple ox horn connector removes the buckles on both sides.

Classification of Box Header: Box Header are divided in o 1.27mm pitch Box Header, 2.0mm pitch Box Header and 2.54mm pitch Box Header according to PIN needle gauge. The diameter of the square row needles used will be changed accordingly according to the different pitch.According to the installation form, it can be divided in o straight needle Box Header, curved needle Box Header and SMT patch Box Header.

Function of Box Header: Box Header is welded on PCB board, connect IDC cable of corresponding specifications, and then form the circuit connection mode required by the designer with other circuits. Usually used to transmit control signals and weak currents.

Application of Box Header: The products are widely used in computer mainboard, liquid crystal display, telecommunication card, memory, mobile hard disk, card reader, digital camera, MP3, PDA, liquid crystal TV, switch, automobile anti-theft device, video phone, cordless phone and various communication equipment.

Product Name

China factory 1.27mm pitch SMT / SMD with CAP box header connector

Pitch1.27mm
DetailBox header connector
HousingPA9T / LCP +30%G.F UL94V-0
Number of Pin4~100P
Brand NameYxcon
Contact MaterialBrass
Insulator MaterialPBT ,PA6T ,PA9T ,LCP ,PA66 ,PA46 ,PPS ,PA115(Halogen Free)
Rating Current1.00AMP
Contact Resistance20mΩ Max
Withstanding VoltageAC 500V/Minute
Insulating Resistance1000MΩ Min
Temperture Range

-40°C to +105°C

PlatingGold(Au) or Tin(Sn) plated over Nickel(Ni)

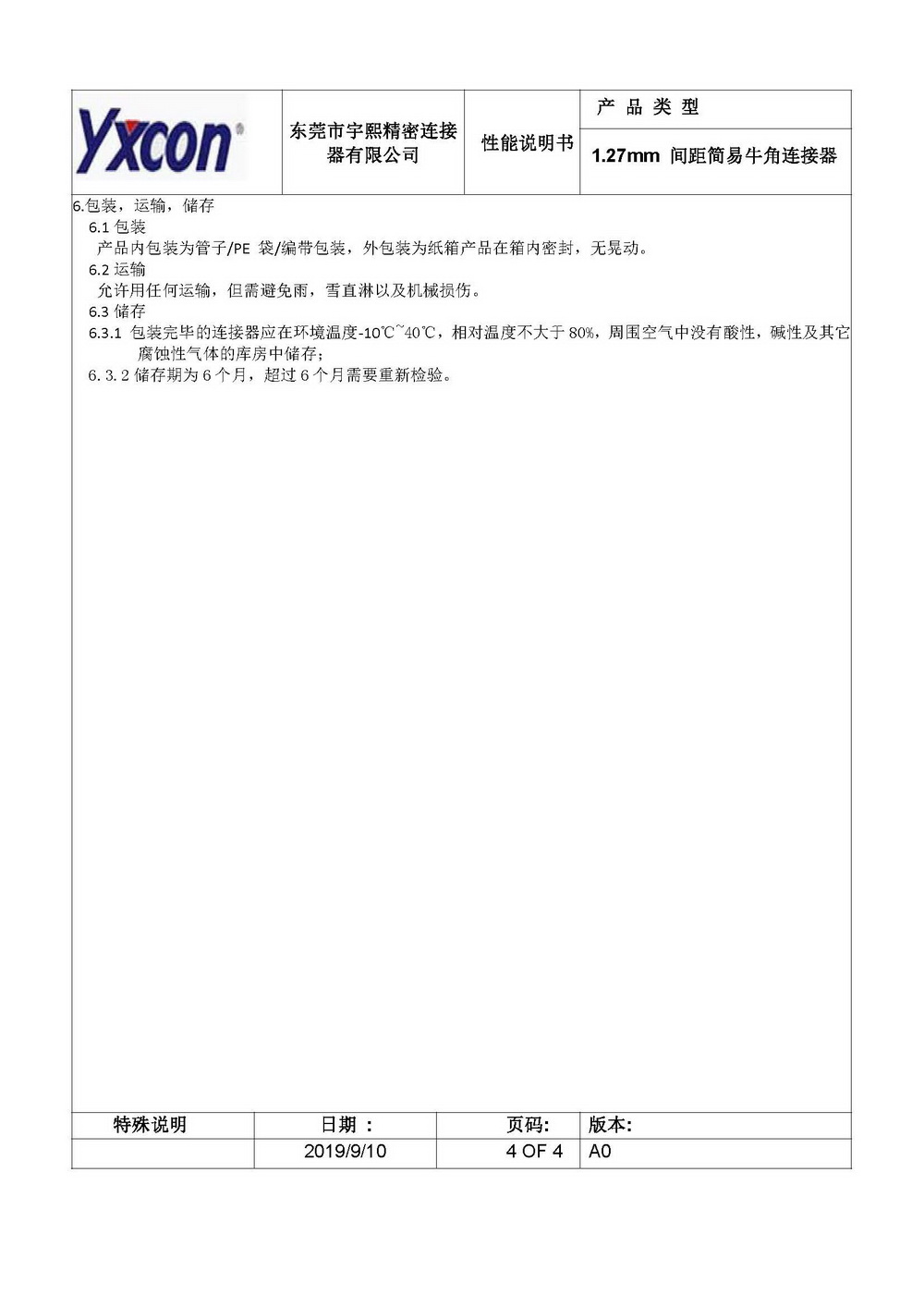

PackagingPE Bag,Tube,Tape&Reel,Tube+CAP,Tray,Plastic Box
