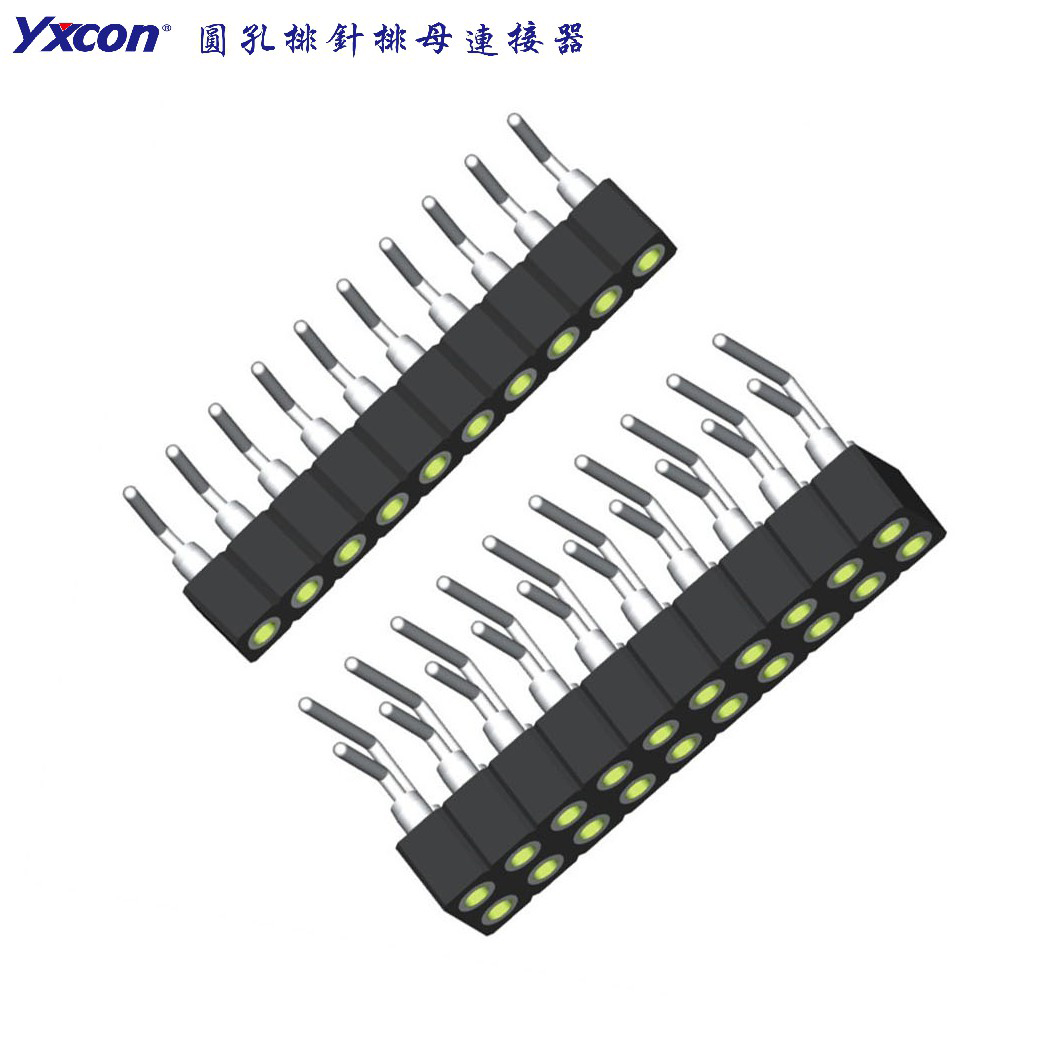

Pitch 2.54 Machined Female Header Connector.
| Type: | machined Female Header Connector |
| Application: | PCB |
| Interface Type: | DIP |
| Packaging: | carton box |
| Supplier Type: | Original manufacturer |
| Place of Origin: | Guangdong, China |
| Color: | Black, Black |
| Description: | Machined Pin Header Connector |
| Number of Positions: | 1-40 PIN/2-40PIN/3-50PIN |
| Pitch: | 1.778mm, 2.54mm,2.mm,1.1mm,5.0mm |
| Number of Rows: | Single Row, two rows, three rows |
| Material: | PA6T, PBT, PPS, LCP,PA9T |
| Plating: | Gold Palting |
| Housing: | High Temperature Thermoplstics |
| Contacts: | Copper Contact Gold Plating Contact |
| Style: | DIP, SMT, straight, right angle |
| Current Rating | 1.0AMP |
| Contact Resistance | 10mΩ Max |
| Withstand Voltage | 200V AC/Minute |
| Insulation Resistance | 500mΩ Min |
| Operation Tempererature | -55℃ To +105℃ |
| Contact Material | CnZn 36PB3(C3600) |
| Contact Plating | Au Over Ni |
| Insulator Material | PPS Black+30%GF UL94-V0 |
| Standard | LCP Or PA6T Or PBT+30%GF |
| Packing | Tube/reel, PE bag, carton |
