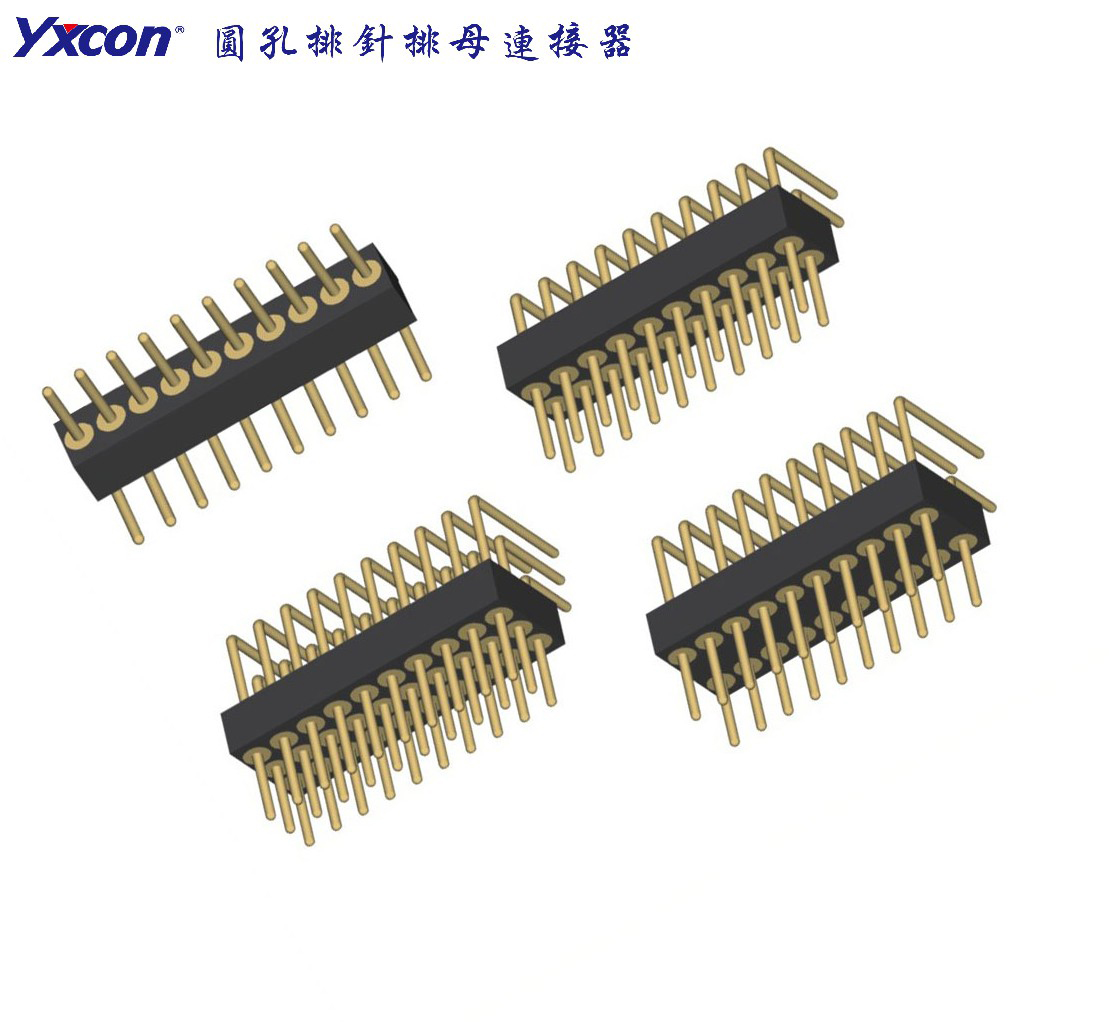

Pitch 1.27mm Machined Pin Header， 90°
Pitch 1.27mm Machined Pin Header
This products PDF：| Pitch | 1mm,1.27mm,2mm,2.54mm,3.96mm,5.08,1.778mm |
| Material | PA6T,PA9T,LCP |
| Insrlator Material | Polyester(UL94V-0) |
| Contact Material | Brass |
| Contact Plating | AU OR SN OVER 40u" NI |
| Current Rating | 1.5Amps |
| Withstanding Voltage | AC 500Vmin/Minute |
| Insulation Resistance | 1000M Min |
| Operation Temperature | —40℃ to +150℃ |
| Package | Bag packing,Tube packing,Tape&Reel packing |
| Application | Pcb board |
| Positions | 1-40pin |
| Samples | Provided |
| Confirmation | Drawing will be provided before production |
