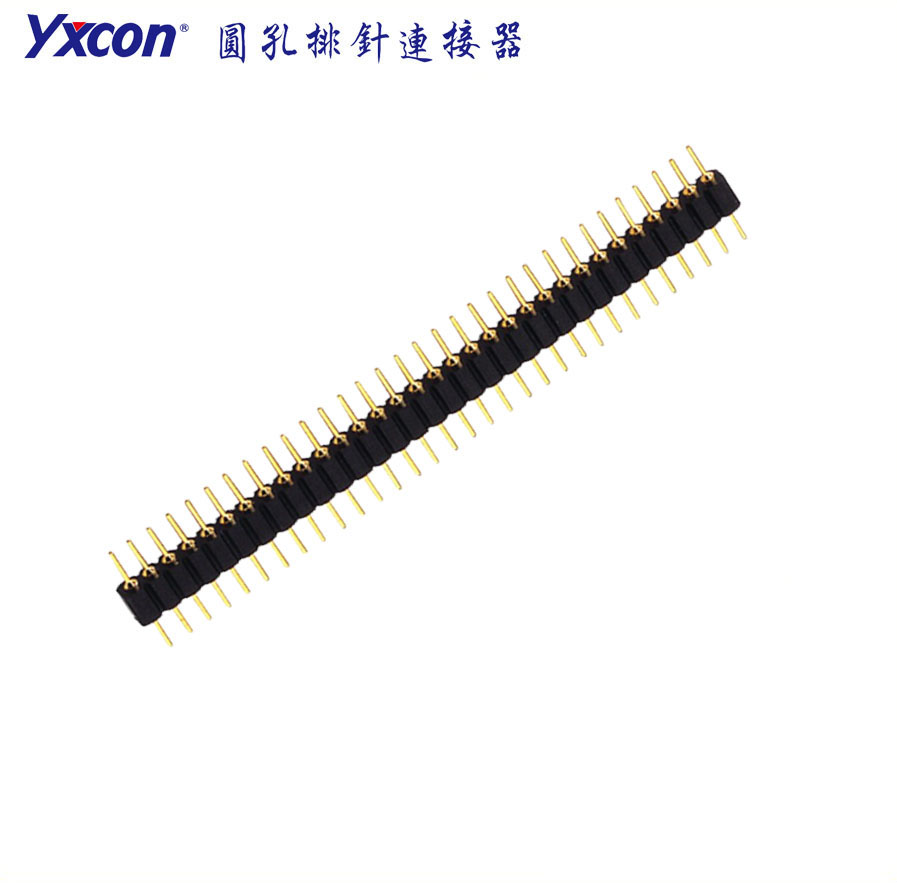

1.778mm Machined Pin Header
1.778mm Machined Pin Header
This products PDF：| Description | 1.778mm Machined pin header Round Connector dual row L=12.1mm | |||||
| Standard Dimension | PA | PB | PC | Length | ||
| 12.1 | ||||||
| Custom Dimension | ||||||
| Pin ways | 2~50P | |||||
| Alternative Plating | G/F | Tin | Sel. Gold/Tin | |||
| GO | SN | S0 | ||||
| Packing way | PE Bag /Tube/ Tray/ Plastic box/ Tape&Reel Packing. | |||||
| MOQ | 500PCS | |||||
| Delivery time | 1-2weeks after confirm order | |||||
| Engineering Specifications | Rated Current:1.5AMP | |||||
| Contact Resistance: 20mΩ Max | ||||||
| Withstand Voltage:500V AC/DC | ||||||
| Insulation Resistance:1000MΩ Min | ||||||
| Operation Temperature: -40°c to +105°c | ||||||
| Contact Material :brass | ||||||
| Contact Plating: Au Over Ni | ||||||
| Insulator Material :Polyester (UL94V-0) | ||||||
| Standard: PPS | ||||||
| Max.Processing Temp230°c for 30-60 Seconds / (260°c for 10 Seconds) | ||||||
label:
1.778mm Machined Pin Header
